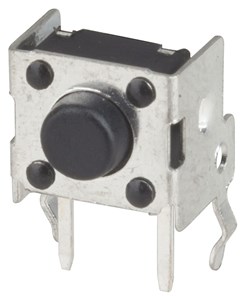

1.4mm SPST Right-Angle Micro Tactile Switch

Code: 8205876
Stock Status: In Stock
    Rating: 12VDC 50mAOperating Temperature: -20~70°CContact Resistance: 100mR Max.Insulation Resistance: 100mR Min. at 100VDCWithstand Voltage: 250VAC fo...

$2.85

Each

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
Features
    Normally open SPST right-angled micro tactile switch.
    DC current rating: 50mA
  • DC Voltage: 12.0 V
  • Width: 7.4mm
  • Height: 7.2mm
  • Depth: 6.2mm
  • Packaged Volume: 0l
  • Packaged Weight: 0kg
  • Packaged Length: 1cm
  • Packaged Width: 0.5cm
  • Packaged Height: 1cm
  • Switch Type: Tactile Pushbutton
  • Poles / Contacts: 1 pole
  • Throws / Positions: 1pos
  • Switch Function: Single Action Momentary
  • Contact Resistance: 100mΩ
  • Insulation Resistance: 100mΩ
  • Dielectric Strength: 100V
  • Mechanism Material: Plastic
  • Switch Connection: SMD
  • Switch Colour Coded: Black
  • Actuator Height: 1.4mm
  • Pole Throw Type: SPST
  • Actuator Diameter: 3.4mm
  • DC Current Rating: 50.0 mA
  • Switch at Right Angles to Mount: true
  • Availability: Stocked item
