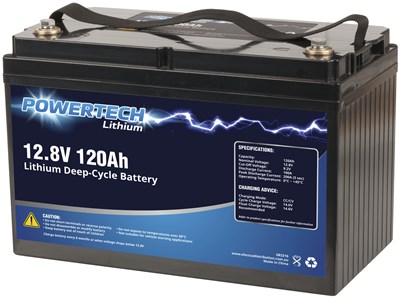

12V 120Ah Lithium Deep Cycle Battery - 6000+ Cycles

Code: 8205576 Brand: Jaycar

Stock Status:	Contact Us

These high quality LiFePO4 batteries have triple the cycle life of some cheaper alternatives giving long lasting value.

Each

Please note: Prices are shown including GST (where applicable) and are in AUD$

Features

The next generation of power storage is here! These LiFePO4 batteries may look fairly similar to lead acid batteries, but internally they're a totally different, next generation concept. They're actually made up of prismatic cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells
This 120Ah model can provide continuous current up to 100A with peaks of 200A. Absolutely perfect for portable power, and replacement of similar capacity lead acid / AGM battery
Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- 10+ years life span
- 100amp continuous output
- 6000 cycles (>80% capacity)
Specifications:
Cut-Off Voltage: 10V approx
Charge Type: Constant Current / Constant Voltage
Discharge Current: 100A
Charge Current: 50A (Recommended), 100A (max)
Internal Cells: prismatic LiFePO4
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%
