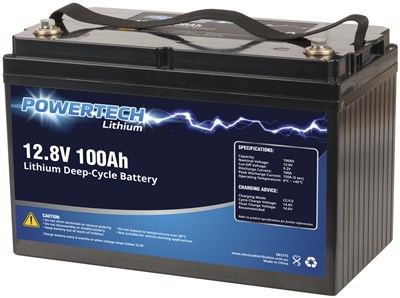

12V 100Ah Lithium Deep Cycle Battery - 6000+ Cycles

Code: 8205575   Brand: BATT
Stock Status: Contact Us
    These LiFePO4 batteries are similar in physical size but weigh less than half of their Lead Acid counterparts.

$438.90

Each
Please note: Prices are shown including GST (where applicable) and are in AUD$
    3 Year Warranty
  • Hazardous Materials
  • The next generation of power storage is here! These LiFePO4 batteries may look fairly similar to lead acid batteries, but internally they're a totally different, next generation concept. They're actually made up of prismatic LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells
  • This 100Ah model can provide continuous current up to 100A, with peaks of up to 150A. It's not suitable for a primary vehicle starting battery, however is absolutely perfect for house batteries, backup batteries, and virtually any other application where you would typically use a large lead acid / AGM battery
  • Features:
  • - Much lighter than Lead Acid and AGM Batteries
  • - Robust LiFePO4 Cells
  • - 10+ years life span
  • - 100amp continuous output
  • - A-grade prismatic cells
  • Specifications:
  • Service Life: 10yrs+
  • Cycle Life:6000 cycles (> 80% capacity retention)
  • Able to discharge up to 4 batteries in parallel or 2 in series.
    Operating Temperature: 45°C, 45°C
  • Operating Humidity: 85%
  • Storage Temperature: 0°C, 40°C
  • Storage Humidity: 0%, 50%
  • Width: 325mm
  • Height: 220mm
  • Depth: 170mm
  • Weight: 11kg
  • DG UN Number: 3480
  • DG Ship Name: 3480 - Lithium Ion Batteries
  • DG Class: 9
  • DG Pack Group: II - Medium Danger
  • DG Hazardous Chemical Code: 4W
  • Battery Watt Hour Rating (Required for Lithium Batteries): 1Wh
  • Packaged Volume: 19l
  • Packaged Weight: 11kg
  • Packaged Length: 38cm
  • Packaged Width: 20cm
  • Packaged Height: 25cm
  • Recharging Voltage: 14.6V
  • Standard Recharge Current: 40A
  • Charging Method: Constant CurrentConstant Voltage
  • Battery Chemical Composition: Lithium Ferrous Phosphate (LiFePO4)
  • Battery usage: Bulk Storage
  • Battery Peak Current: 150A
  • Amp Hour Rating: 100Ah
  • 20 Hour Capacity: 100Ah
  • Internal Resistance: 60mΩ
  • Connection Type: M8 Bolt/Nut
  • Type of battery: li-ion
  • Peak Discharge Duration: 5sec
  • Continuous Current: 100A
  • Nominal Voltage: 12.8V
  • Cut-Off Voltage: 9.2V
  • Availability: Stocked item
