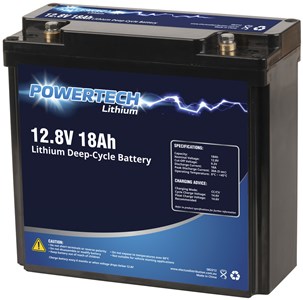

12.8V 18Ah Lithium Deep Cycle Battery GN2

Code: 8205573   Brand: Jaycar
Stock Status: Contact Us
    These LiFePO4 batteries are similar in physical size but weigh less than half of their Lead Acid counterparts.

$218.90

Each

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
Features
    3 Year Warranty
  • Hazardous Materials
  • The next generation of power storage is here! These LiFePO4 batteries may look fairly similar to lead acid batteries, but internally they're a totally different, next generation concept. They're actually made up of regular 32650 LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells
  • This 18Ah model can provide continuous current up to 18A. Absolutely perfect for high capacity portable power, and replacement of similar capacity lead acid / AGM battery
  • Features:
  • - Much lighter than Lead Acid and AGM Batteries
  • - Robust LiFePO4 Cells
  • - Excellent life span
  • Specifications:
  • Capacity: 18Ah
  • Service Life: 10yrs+
  • Cycle Life: 6000 cycles (> 80% capacity retention)
  • Cut-Off Voltage: 10V approx
  • Charge Type: Constant Current / Constant Voltage
  • Discharge Current: 18A
  • Max Continuous Current: ≤30A (≤5 sec)
  • Internal Cells: 32650 LiFePO4
  • Maximum Internal Resistance: 85MΩ
  • Output Terminals: M5 Bolt Down
  • Operating Temperature: 0-45°C (60°C max discharging)
  • Operating Humidity: RH < 85%
  • Storage Temperature: 0-40°C (15-25°C recommended)
  • Storage Humidity: RH < 50%
    Length: 180mm
  • Width: 80mm
  • Depth: 170mm
  • Weight: 2kg
  • DG UN Number: 3480
  • DG Ship Name: 3480 - Lithium Ion Batteries
  • DG Class: 9
  • DG Pack Group: II - Medium Danger
  • DG Hazardous Chemical Code: 4W
  • Battery Watt Hour Rating (Required for Lithium Batteries): 230.4Wh
  • Packaged Volume: 3.45l
  • Packaged Weight: 2.34kg
  • Packaged Length: 19.1cm
  • Packaged Width: 9.4cm
  • Packaged Height: 19.2cm
  • Battery Chemical Composition: Lithium Iron - Li-Fe
  • Battery usage: Bulk Storage
  • Battery Peak Current: 20A
  • Amp Hour Rating: 18Ah
  • 20 Hour Capacity: 18Ah
  • Internal Resistance: 80mΩ
  • Connection Type: M5 Bolt/Nut
  • Type of battery: li-ion
  • Peak Discharge Duration: 5sec
  • Continuous Current: 18A
  • Availability: Stocked item
