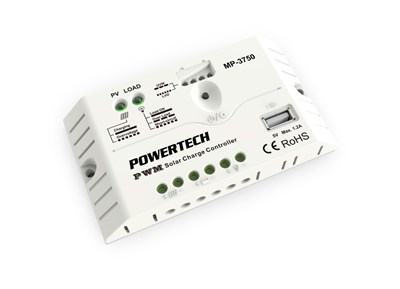

10A PWM Solar Charge Controller 12/24V with USB

Code: 8204236   Brand: Jaycar
Stock Status: In Stock
    This PWM controller will control the charge from your solar panels and is suitable for sealed lead acid, as well as Gel/flooded type batteries.

$65.95

Each

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
Features
    1 Year Warranty
  • USB 2.0
  • Intelligent yet lightweight, this solar controller uses Pulse Width Modulation (PWM) to control battery charging. With total autonomy, its set-and-forget operation means you can get maximum charge into your batteries from your solar installation without having to worry about those things. Suitable for solar panels up to 160W, it provides all the important safety features such as overload, short-circuit, over-discharge, and reverse-polarity protection. A handy feature is also the USB port located on the front panel, to provide up to 1.2A charging - very handy during power outages to keep your phone charged without any additional equipment. Charge modes include bulk, equalise, and float charging, and the unit automatically switches to the best charging mode. Suitable for sealed led acid, as well as Gel/flooded type cells
  • Note:
  • Solar panel nominal voltage must match battery voltage - eg. 12V solar panel on a 12V battery system
  • Features:
  • - Automatic charge mode selection
  • - Suitable for 12V and 24V battery banks
  • - USB charging port on front panel
  • - Charging Modes: Bulk, Equalise, Float
  • - Supports: Sealed, Gel and Flooded
  • - USB Output: 5V @ 1.2A
  • - Terminals to suit cable up to 4mm2.
    DC current rating: 10A
  • DC Voltage: 12V, 24V
  • IP Rating: IP20
  • Dust/Particle Ingress Protection: 2 - Objects > 12.5mm, Fingers or small objects
  • Liquid/Moisture Ingress Protection: 0 - Not protected
  • Operating Temperature: -35°C, 55°C
  • Input Type: Screw Terminal
  • Output Type: Screw Terminal
  • Total Current Rating: 1.2A
  • Number of Ports: 1pc
  • Length: 120mm
  • Width: 67mm
  • Height: 22mm
  • Weight: 100g
  • Packaged Volume: 0.4l
  • Packaged Weight: 0.14kg
  • Packaged Length: 13cm
  • Packaged Width: 8.1cm
  • Packaged Height: 3.8cm
  • Charge Controller Technology: Pulse Width Modulated (PWM)
  • Max PV Open Circuit Voltage: 50V
  • Max Charging Current: 10A
  • Max Load Current: 10A
  • Max Solar Panel Array: 120W, 240W
  • Availability: Stocked item
