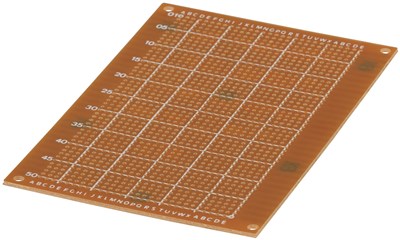

Universal Pre-Punched Experimenters Boards - Medium

Code: 8203960   Brand: PCB EXP
Stock Status: In Stock
    HP9552 is an affordable way to create prototypes for electronic circuits with isolated pads connected by a 0.5mm gap that can be bridged with solder. The board also includes fingers on opposite ends with a 3.6mm edge pitch for connection and identification markings to help with component and layout identification.

$18.90

Each

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
Features
    The low cost way to build prototypes. Each donut is separated from its neighbours by about a 0.5mm gap. This effectively isolates each pad but also makes it easy to bridge solder across to make interconnections. Each board also has `fingers' on opposite ends with a 3.6mm edge pitch. These can be used to connect to and from the board or to a card edge connector. Finally the non- solder side of the board has an alpha- numeric grid printed on it to assist in component identification board layout.
    Length: 95mm
  • Width: 140mm
  • Packaged Volume: 0.04l
  • Packaged Weight: 0.03kg
  • Packaged Length: 13.9cm
  • Packaged Width: 9.5cm
  • Packaged Height: 0.3cm
  • Board type: Doughnut
  • PCB hole spacing: 2.54mm
  • PCB hole number: 1450pc
  • Availability: Stocked item
