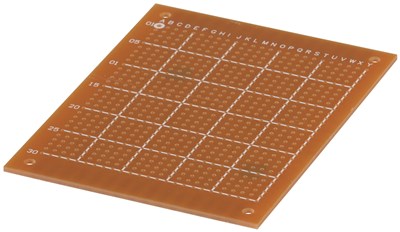

Universal Pre-Punched Experimenters Board - Small

Code: 8203959   Brand: Universal
Stock Status: In Stock
    The HP9550 offers a low-cost method to build prototypes, featuring separated pads with easy-to-bridge solder connections, 3.6mm edge pitch fingers for connections to/from the board, and an alpha-numeric grid on the non-solder side for component identification and board layout assistance.

$11.90

Each

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
Features
    The low cost way to build prototypes. Each donut is separated from its neighbours by about a 0.5mm gap. This effectively isolates each pad but also makes it easy to bridge solder across to make interconnections. Each board also has `fingers' on opposite ends with a 3.6mm edge pitch. These can be used to connect to and from the board or to a card edge connector. Finally the non- solder side of the board has an alpha- numeric grid printed on it to assist in component identification board layout.
    Length: 95mm
  • Width: 72mm
  • Packaged Volume: 0.03l
  • Packaged Weight: 0.01kg
  • Packaged Length: 9.5cm
  • Packaged Width: 7.2cm
  • Packaged Height: 0.5cm
  • Board type: Doughnut
  • PCB hole spacing: 2.54mm
  • PCB hole number: 750pc
  • Availability: Stocked item
