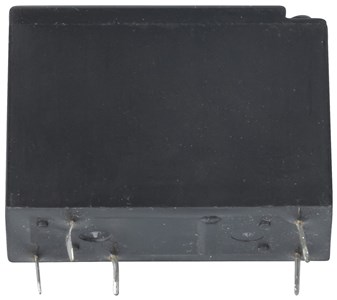

24V SPDT PC Mount Relay - JW Series

Code: 8201897   Brand: JW
Stock Status:
Delivery (2-5 Days)
    Ideal for use in industrial, office and even home applications: - Industrial: NC machines, robots, temperature, controllers - Office: Photocop...

$17.90

Each

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
Features
    Ideal for use in industrial, office and even home applications:
  • * Industrial: NC machines, robots, temperature, controllers
  • * Office: Photocopiers, vending machines
  • cHome: TV sets, VCR, microwave ovens
  • Features
  • :
  • * Miniature package with universal terminal footprint
  • * High dielectric withstanding for transient protection: 10,000V surge in us between coil and contact
  • * Sealed construction
  • * Class B coil insulation
    AC Voltage: 250V
  • AC Current Draw: 10A
  • DC Voltage: 24V
  • DC Current Draw: 10A
  • Packaged Volume: 0.01l
  • Packaged Weight: 0.01kg
  • Packaged Length: 3cm
  • Packaged Width: 2.5cm
  • Packaged Height: 1.2cm
  • Input: DC
  • Contact format: SPDT
  • Coil Resistance: 1Ω
  • AC Contact Voltage: 250V, 250V
  • AC Switching Current (Opening): 5A, 5A
  • DC Contact Voltage: 30V, 30V
  • DC Switching Current (Opening): 5A
  • Operation Time: 15ms
  • Release Time: 5ms
